Extra High Voltage XLPE Insulated Corrugated Aluminum Sheathed Power Cable

[/vc_column_text][ultimate_spacer height=”20″]

[ultimate_spacer height=”20″][/vc_column][/vc_row][vc_row][vc_column width=”1/1″][vc_tour style=”tab-style-one”][vc_tab title=”Specification” tab_id=”1420764122-1-28″][vc_column_text]Cable Standards
GB/T11017,GB/Z18890,GB/Z22078,IEC,BS,ASTM and etc. upon request.




Specification And Name

  • YJLW02
    Power Cable with Copper Conductor, XLPE Insulation, Corrugated Aluminum Sheath, PVC Outer Sheath
  • YJLW02-Z
    Longitudinal Water-blocking Power Cable with Copper conductor, XLPE Insulation, Corrugated Aluminum Sheath, PVC Outer Sheath
  • YJLW03
    Power Cable with Copper Conductor, XLPE Insulation, Corrugated Aluminum Sheath, PE Outer Sheath
  • YJLW03-Z
    Longitudinal Water-blocking Power Cable with Copper Conductor, XLPE Insulation, Corrugated Aluminum Sheath, PE Outer Sheath
  • YJLLW02
    Power Cable with Aluminum Conductor, XLPE Insulation, Corrugated Aluminum Sheath, PVC Outer Sheath
  • YJLLW02-Z
    Longitudinal Water-blocking Power Cable with Aluminum Conductor, XLPE Insulation, Corru-gated Aluminum Sheath, PVC Outer Sheath
  • YJLLW03
    Power Cable with Aluminum Conductor, XLPE Insulation, Corrugated Aluminum Sheath, PE Outer Sheath
  • YJLLW03-Z
    Longitudinal Water-blocking Power Cable with Aluminum Conductor. XLPE Insulation, Corru一gated Aluminum Sheath, PE Outer Sheath

Operating Environment

  • Max admissible temperature for conductor: 90℃ under normal running condition; 250℃ under short circuit(max. duration is 5s)
  • Min bending radius is recommended to be 20 times of cable overall diameter
    PVC sheathed cables shall not be installed if the environment temperature is below 0℃,and if it is below 0℃,the cable should be heated before the installation

Metal Sheath

  • Extra high voltage power cable with corrugated aluminum sheath can be especially suitable for the following conditions in addition to the normal ones
  • Extra high voltage power cable with corrugated aluminum sheath: places where there is not much corrosion but much requirement for mechanical strength (e.g. direct connection to transformers, laying on bridges and in vertical shafts)

Plastic Outer Sheath

  • Extra high voltage power cable with PVC outer sheath ( Type 02 ) are suitable for high voltage transmission line with general fireproof requirement and centain insulation requirement for the outer sheath
  • Extra high voltage power cable with PE outer sheath( Type 03 )are suitable for high voltage transmission line directly buried underground with higher insulation requirement on the outer sheath; and if they are laid in tunnels or vertical shafts, anti-fire and flame-retardant measures must be taken

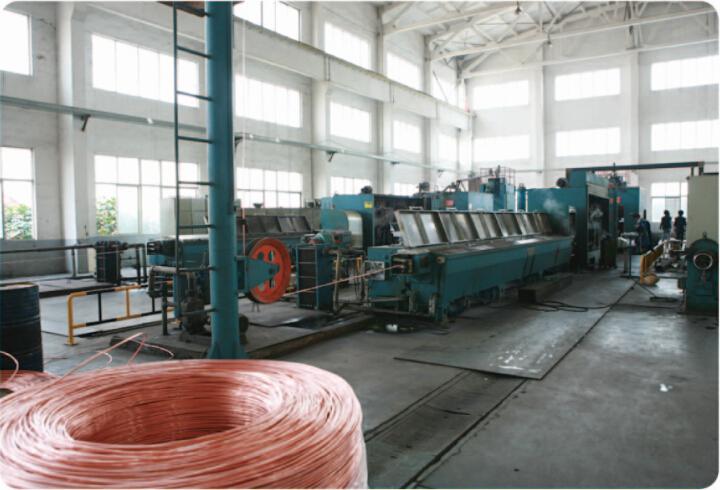

[/vc_column_text][/vc_tab][vc_tab title=”Process Flow Chart” tab_id=”1420764122-2-88″][vc_single_image image=”2434″ alignment=”center” border_color=”grey” img_link_target=”_self” img_size=”full”][/vc_tab][vc_tab title=”Drawing Machine” tab_id=”1420765036257-2-10″][vc_column_text]Equipment Characteristics

  • Non-clip drawing machine with 13 dies and separate driving motors
  • Continuous annealing
  • Inert gases protection
  • Antioxidation material application
  • Continuously dual bobbins spooling

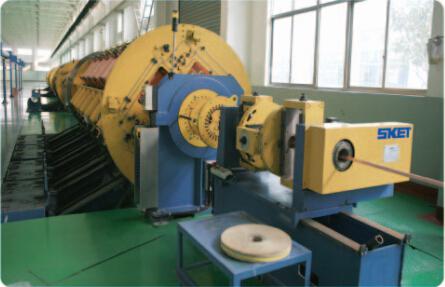

drawing mechine[/vc_column_text][/vc_tab][vc_tab title=”Frame-type Stranded RFS630-84″ tab_id=”1420766341868-3-8″][vc_column_text]

Technical Characteristics

  • Produce circular compacted conductor with cross sectional area up to and including 800 mm²
  • Produce the segment in milliken conductor with cross sectional area up to and including 3000mm²
  • Compacting coefficient comes to 0.89
  • Continuously automatic loading/unloading
  • With Max. Line speed of 60m/min
  • Intelligent control

Equipment Advantage
Frame-type Stranded RFS630-84 Bobbins is imported from Sket in Germany. The whole line is controlled by PC and operated with touch screen. The process parameters of stranding tongue and rotating speed for every Stranding Cage, line speed and tension of single wire can be set on the control screen and automatically adjusted by PC. This line is equipped with side load / unloading system to load / unloading reel. The pay-off reel is controlled by pneumatic tension.which is controlled by servo system through PC to guarantees the evenness and stability of the pay-off. When the reel weight is getting lighter,PC control program will increase the tension through tension servo system to guarantee the constant tension. The cage is also equipped with pneumatic brakes, which realizes the regeneration brake of the DC motor simultaneously through servo system. This line is mounted with roller-compacting and pre-spiraling head. The pre-spiraling torque is controlled and adjusted by PC automatically, which guarantees the evenness and stability of pre-spiraling torque on the setor block of the conductor.

Frame-type Stranded

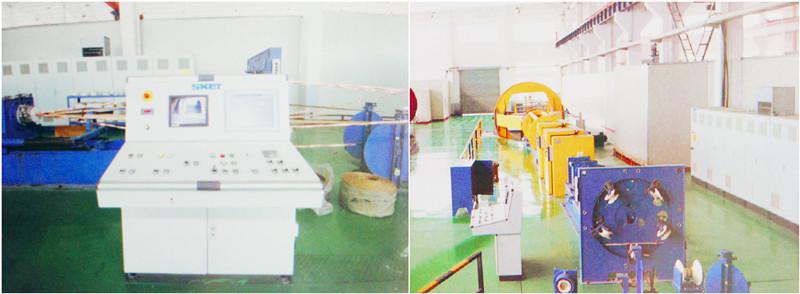

[/vc_column_text][/vc_tab][vc_tab title=”Drum Twist Stranded DTPC3600″ tab_id=”1420766814082-4-4″][vc_column_text]Drum Twist Stranded DTPC3600

Technical Characteristics

  • Milliken conductor stranding into cironlarshape
  • Produce Milliken conductor with cross-sectional area up to and including 3000hnm²
  • Taping with constant tension

Equipment Advantage
The whole line of Drum Twist Stranded DTPC3600 is controlled by PC and operated with touch screen. The process parameter of stranding lay length, speed of rotating caterpillar, line speed and payoff tension can be set on the control screen and automatically adjusted by PC. The take-up and pay-off is fork type rotating stand and equipped with hoistable platform. The payoff is equipped with guiding and brake system as well as wire-break detector, the tension for the taping head is automatically controlled and phase calibration unit is automatically adjusted.

Drum Twist Stranded

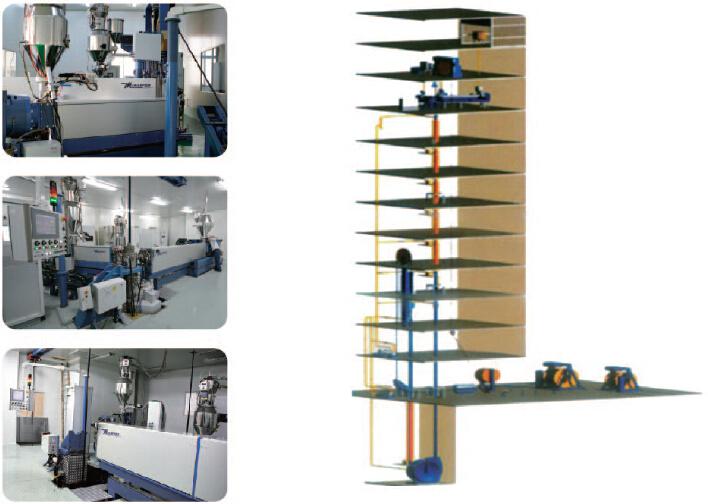

[/vc_column_text][/vc_tab][vc_tab title=”VCV Production Line” tab_id=”1420767195561-5-8″][vc_column_text]Equipment Characteristics

  • Maillefer water cooling extruder unit is most suitable for extrusion of high voltage XLPE.
  • Central Water Station Temperature Control:no noise,being easy to control temperature and pressure,being equipped with precise proportional valve to ensure stable,temperature control and having no effect on generator room’s constant temperature(extremely critical for high-pressure production).
  • The best crosshead focusing on production of high voltage cables or extra high voltage cables is Maillefer’s flat crosshead, which is characterized with fast and stable flow rate,eliminating the entangling risk .Tue to its long flows,there is no temperature interference between inner and outer shield layers and insulation layer.
  • Energy efficient direct tube heating system.
  • Maillefer is the first company who proposed the concept of post-heating and using the most stable pre-heating machine called YIFUDE in the world.

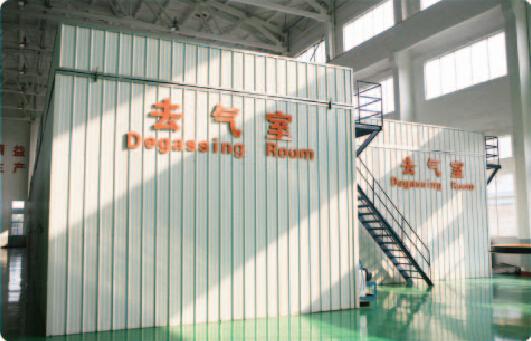

vcv[/vc_column_text][/vc_tab][vc_tab title=”Degas” tab_id=”1420767505681-6-8″][vc_column_text]Equipment Characteristics

  • Regular gas-exchange
  • Intelligent temperature control

Technical characteristics

  • expertise, its function is to eliminate the residual gas of VCV production process.
  • eliminate the insulation thermal stress insulation heating stress further.

Equipment Advantage
The principle is to adopt heat circulation control technology to force wind heating. namely to heat the air at the bottom of the degas room and then to blow the heated air into the degas room from the bottom by blower to heat the cable. The air with lower temperature is sucked back by the blower from the upper to be heated continuously. This forms the circulation of the heated wind. The hot wind shall be blown from several points to get heating evenly and to improve the efficiency. Perforate the top and connect the vacuum pump to form a negative pressure in the degas room. It is about 0.8 atmospheric pressure of negative pressure to improve the degas efficiency. The heating unit adopts PID regulator to have the linear regulating for the temperature. Several thermocouples shall be equipped in the degas room to feed back and regulate the temperature. Installation site of thermocouples: inlet/outlet of the wind, the surface of the cable cores and the space of the degas room. Every thermocouple is connected with a temperature display separately, which can implement real-time monitoring of the temperature of every place in the degas room. Alarm equipment shall be installed at the same time. The system will indicate alarms in time when any problem arises to guarantee the quality of degas.

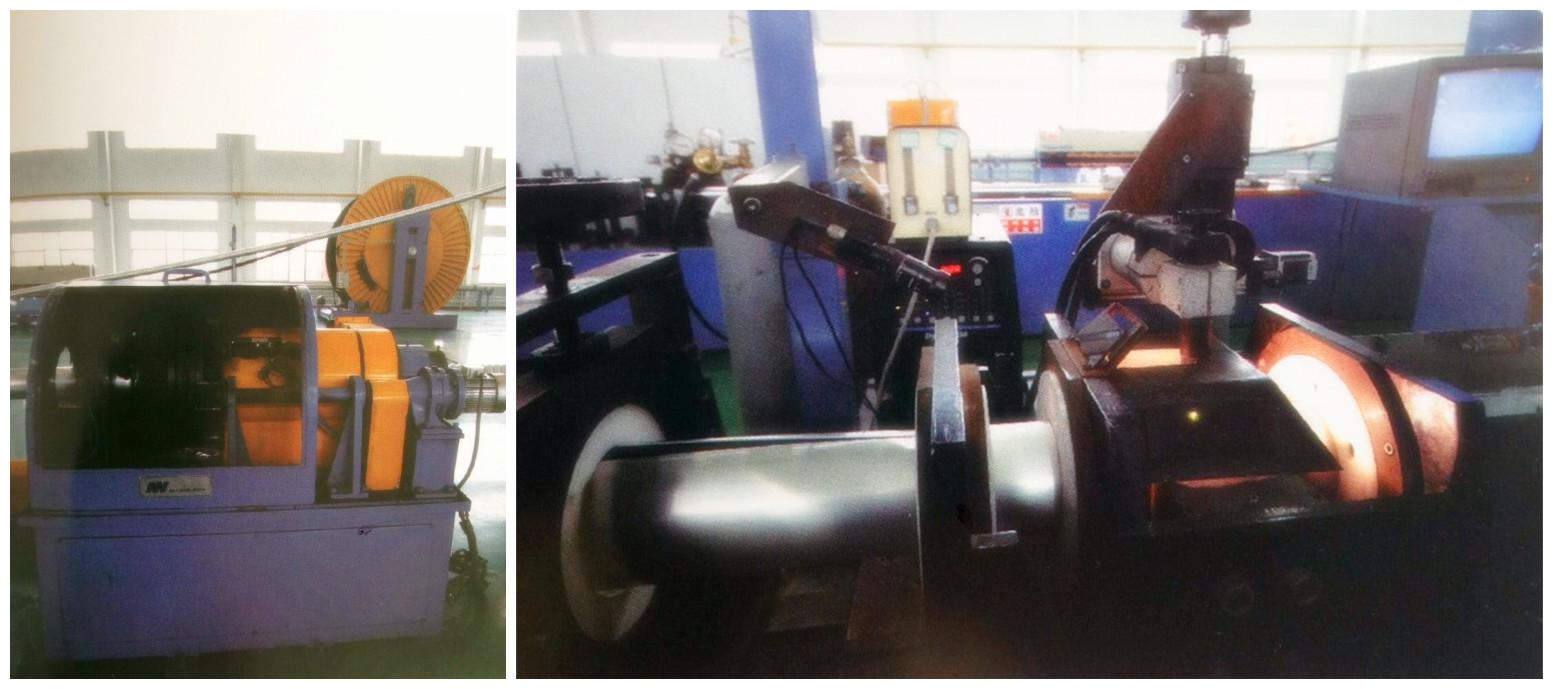

[/vc_column_text][/vc_tab][vc_tab title=”Metallic Sheath Production Line” tab_id=”1420767788293-7-1″][vc_column_text]Equipment Characteristics

  • Welding with double torch, and neat screen
  • Welding various materials such as copper,aiummum and stainless steel
  • Metallic sheath diameter is up to and including 200mm²
  • Online inspection for the welding scam flaw

Technical characteristics

  • With continues wave, free adjustment of the depth and pitch
  • Even thickness of the metal sheath,without any eccentricity,sand hole,blister and transverse crack
  • Outstanding water blocking performance
  • Meeting short-circuit current capacity

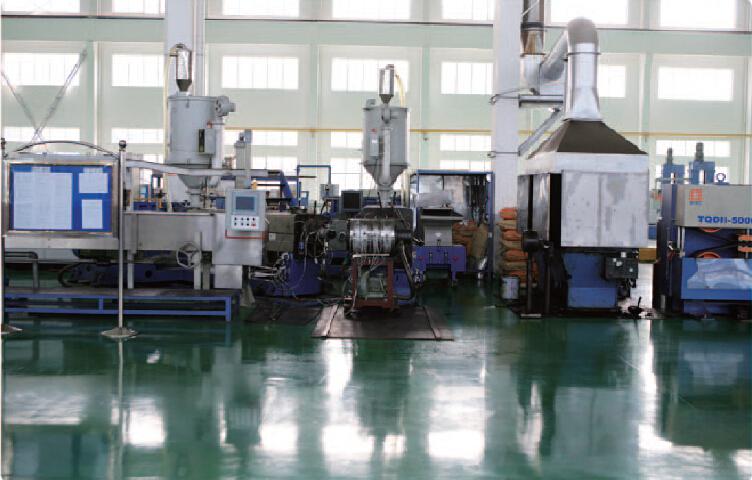

Metallic Sheath Production Line[/vc_column_text][/vc_tab][vc_tab title=”Outer Sheath Production Line” tab_id=”1420768035743-8-3″][vc_column_text]Equipment Characteristics

  • Two extruders with diameter of 911 and 1511 running together can realize the extrusion of single layer or double layers with different materials simultaneously
  • With graphite coating equipment
  • Measuring device for the overall diameter
  • Jetting, printing and meter counting equipment
  • Max. Diameter for the pay-off drum and take-up drum is 4200mm

Equipment Advantage

  • Produce outer sheath with cable overall diameter up to and including 200mm
  • Excellent control for outer diameter and eccentricity

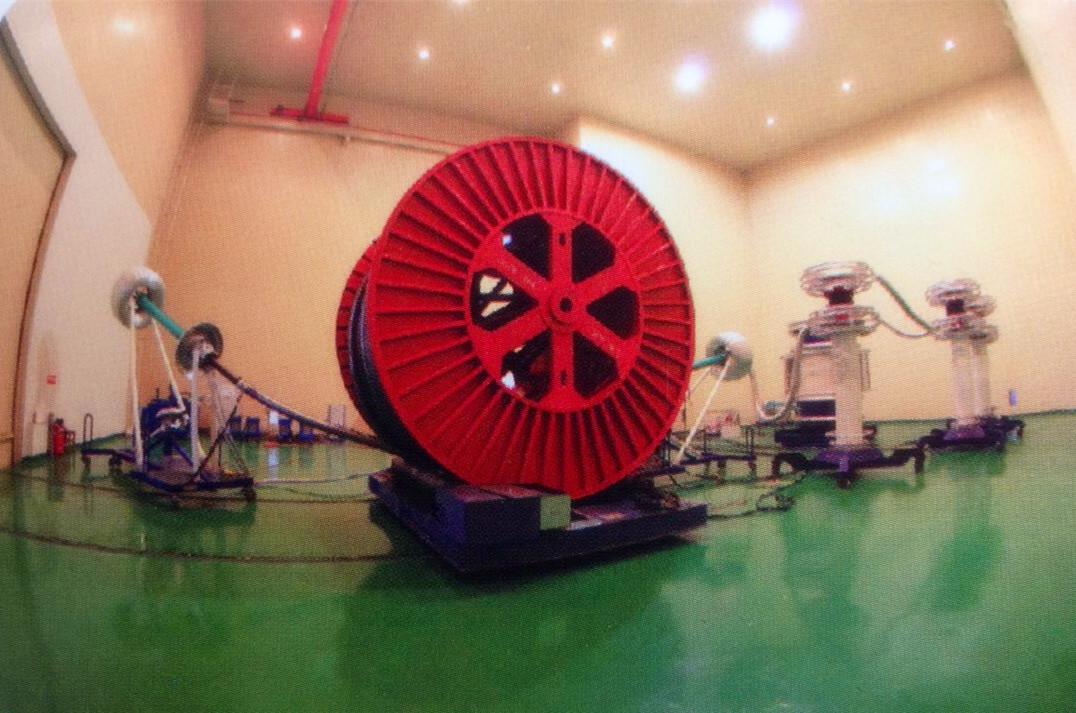

Outer Sheath Production Line[/vc_column_text][/vc_tab][vc_tab title=”Test System” tab_id=”1420768176617-9-3″][vc_column_text]Equipment Characteristics

  • All-metal shielding mom with dimension of 35m x 30m x 20m
  • Series resonant system with max. voltage of 700kV, 35A
  • Tests for resistance, capacitance, and dielectric loss, partial discharge and withstand voltage
  • Max. Load capacitance of 637μf

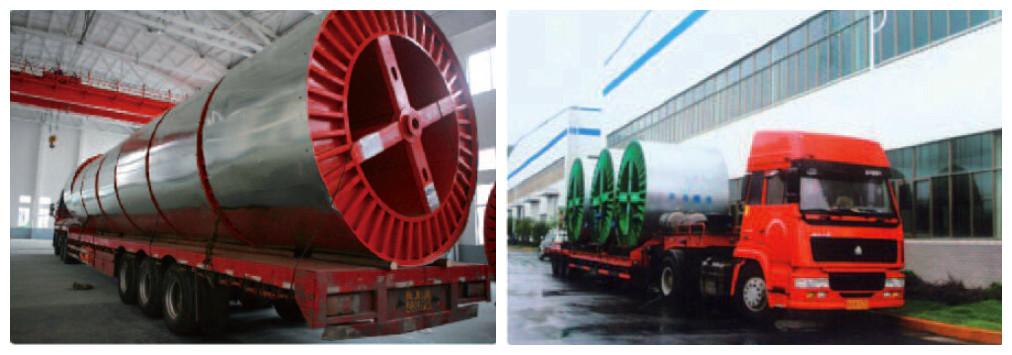

test system[/vc_column_text][/vc_tab][vc_tab title=”Package” tab_id=”1420768365761-10-4″][vc_column_text]

  • Pack according to national standard or customer’ s requirement;
  • Professional package design, firm and durable,protect the cable effectively.

package[/vc_column_text][/vc_tab][/vc_tour][ultimate_modal icon_type=”none” modal_contain=”ult-html” modal_on=”image” onload_delay=”2″ btn_img=”6221″ btn_size=”sm” btn_bg_color=”#333333″ btn_txt_color=”#ffffff” modal_on_align=”left” txt_color=”#f60f60″ modal_size=”small” modal_style=”overlay-fade” overlay_bg_color=”#333333″ overlay_bg_opacity=”80″ header_text_color=”#333333″ modal_border_width=”2″ modal_border_color=”#333333″ modal_border_radius=”0″][contact-form-7 id=”5315″ title=”CONTACT US”][/ultimate_modal][/vc_column][/vc_row]
