UHV Supporting And Expanding Overhead Wire

[/vc_column_text][ultimate_spacer height=”20″][vc_single_image image=”5807″ border_color=”grey” img_link_large=”” img_link_target=”_self” image_hovers=”true” img_size=”full”][ultimate_spacer height=”20″][/vc_column][vc_column]

[ultimate_spacer height=”20″][/vc_column][/vc_row][vc_row][vc_column width=”1/1″][vc_tabs interval=”0″ style=”tab-style-one”][vc_tab title=”SPECIFICATION” tab_id=”1420424554-1-53″][vc_column_text]APPLICATION
UHV Overhead Wire has excellent quarlities of large expanding rate,low corona,low linear density and easy laid.This overhead wire is suitable for high pressure and high altitude place voltage at 750KV and above.

CABLE STANDARDS
Enterprise standard and Q/GDW 385-2009”high density POLY supporting and expanding overhead wires”standard published by State Grid,IEC,BS,ASTM and etc. upon request.

18





CHARACTERISTICS
1.Max. work temperature of cable conductor:90℃
2.Cable is suitable for the line expanding rate not less than 1.2 and no higher than 1.5

PRODUCTS’ RANGE
Sectional supporting and expanding wires up to and including 720 expanding 1000.

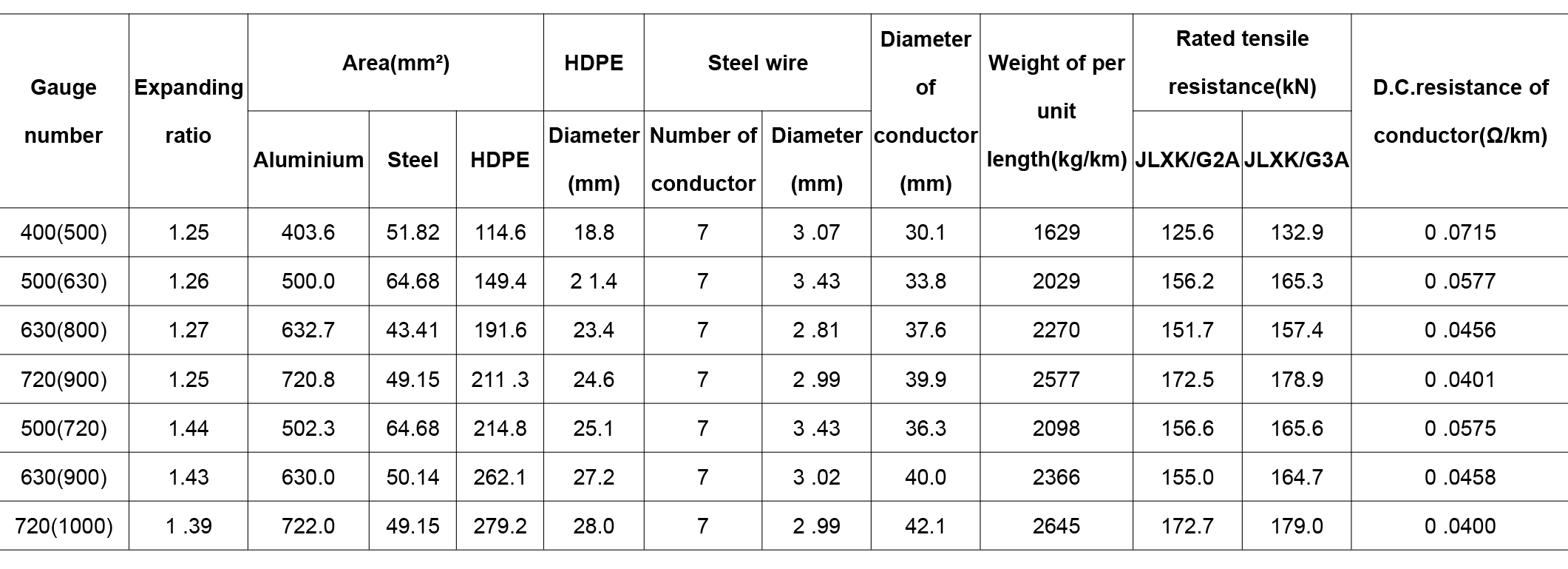

TYPE AND NAME OF CABLE

[table id=uhv /][/vc_column_text][/vc_tab][vc_tab title=”CABLE DIMENSIONS” tab_id=”1420424554-2-22″][vc_column_text]uhv[/vc_column_text][/vc_tab][/vc_tabs][ultimate_modal icon_type=”none” modal_contain=”ult-html” modal_on=”image” onload_delay=”2″ btn_size=”md” btn_bg_color=”#5bb75b” btn_txt_color=”#ffffff” modal_on_align=”left” btn_text=”ENQUIRY” txt_color=”#f60f60″ modal_size=”small” modal_style=”overlay-fade” overlay_bg_color=”#333333″ overlay_bg_opacity=”80″ header_text_color=”#333333″ modal_border_width=”2″ modal_border_color=”#333333″ modal_border_radius=”0″ btn_img=”6221″][contact-form-7 id=”5315″ title=”CONTACT US”][/ultimate_modal][/vc_column][/vc_row]
