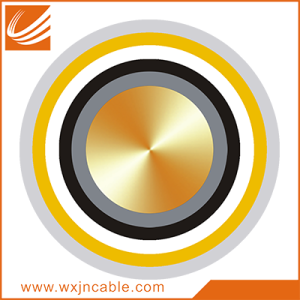

IEC 60227 74 (RVVYP) Oil Resistant PVC Sheathed Screened Flexible Cable
[/vc_column_text][ultimate_spacer height=”20″][vc_single_image image=”5177″ border_color=”grey” img_link_large=”” img_link_target=”_self” img_size=”medium”][ultimate_spacer height=”20″][/vc_column][/vc_row][vc_row][vc_column width=”1/1″]
[ultimate_spacer height=”20″][/vc_column][/vc_row][vc_row][vc_column width=”1/1″][vc_tabs interval=”0″ style=”tab-style-one”][vc_tab title=”SPECIFICATION” tab_id=”1418694620-1-8″][vc_column_text]APPLICATION
IEC 60227 74 (RVVYP) Oil Resistant PVC Sheathed Screened Flexible Cable.
IEC 60227 74 of hook up wire is also used in Industrial machinery,Heating and air-conditioning systems,Machine tools, dry/damp and wet interiors (including water-oil mixtures), but not for outdoor use.
CABLE STANDARDS
IEC 60227,BS,DIN,ICEA up on request.
BASIC INFORMATION
IEC Standard Code Name
60227 IEC 74
Rated Voltage (Uo/U)
300/500V
Cable Structure
Flexible CU/PVC Insulation/PVC Inner Sheath/Plain or Tinned Copper Wire Screened/PVC Over Sheath
CONSTRUCTION
Conductor
Number of cores:2~60 or other multi-core on request.
Preferred number of conductors: 2, 3, 4, 5, 6, 7, 12, 18, 27, 36, 48 and 60.
The conductors shall comply with the requirement given in IEC 60228 for class 5.
Insulation
PVC(Polyvinyl Chloride) Type PVC/D according to IEC
Inner Sheath
PVC(Polyvinyl Chloride) Type PVC/ST5 according to IEC
Screened
Screen shall be applied over the inner sheath, in the form of a braid of plain or tinned copper wires.
Over Sheath
PVC(Polyvinyl Chloride) Type PVC/ST9 according to IEC
CHARACTERISTICS
Conductor temperature
Maximum conductor temperature in normal use: 70℃
Installation temperature
Ambient temperature under installation shall not be below 0℃
Minimum bending radius
The bending radius of cable: (D-Diameter of cable)
D≤25mm——————≥4D
D＞25mm——————≥6D[/vc_column_text][/vc_tab][vc_tab title=”CABLE DIMENSIONS” tab_id=”1418694620-2-99″][vc_column_text][table id=IEC74RVVYP /][/vc_column_text][/vc_tab][/vc_tabs][ultimate_modal icon_type=”none” modal_contain=”ult-html” modal_on=”image” onload_delay=”2″ btn_size=”md” btn_bg_color=”#5bb75b” btn_txt_color=”#ffffff” modal_on_align=”left” btn_text=”ENQUIRY” txt_color=”#f60f60″ modal_size=”small” modal_style=”overlay-fade” overlay_bg_color=”#333333″ overlay_bg_opacity=”80″ header_text_color=”#333333″ modal_border_width=”2″ modal_border_color=”#333333″ modal_border_radius=”0″ btn_img=”6221″][contact-form-7 id=”5315″ title=”CONTACT US”][/ultimate_modal][/vc_column][/vc_row]
